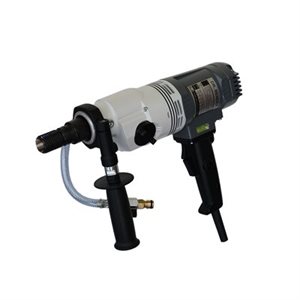

Dr Bender core drill, 2000W@110V, 520 / 1400 / 2900 (EBM33F)
Double-tap and hold to zoom.
Mouse over the image to zoom.

Dr Bender core drill, 2000W@110V, 520 / 1400 / 2900 (EBM33F)

Product Code: DB16

DB16 Breakdown

DB16 Parts



  • Handheld core drilling machine, compact, powerful, in full metal execution
  • Rotor is hand- wound, for maximum filling degree of copper. More copper means more power and better constancy of temperature, consequently better efficiency factor
  • Protection switch respectively overload protection
  • Dry and wet drilling (with appropriate extraction system)
  • Via the existing collar, drilling machine can be mounted on a rig easily.
  • Precise justify via 2 water level bubble for horizontal and vertical drillings
  • Water connection mountable in different positions
  • Solid transport case for easy handling and better protection for the machine during the transport
  • Availability: Out of stock
Technical datas EBM33F Pistol grip
Power input 2.200W
Power output 1.720 W
Voltage/ Frequency 230V/ 50-60 Hz
Rated speed min-1 520/ 1.400/ 2.900
Rated torque Nm 28.12.06
Ø in concrete 20-100mm – Hand-Held
(Wet) 20-160mm – Stand mounted
Ø in abrasive materials 20-200mm – Hand-Held
(Dry)
Drill bit connection 1 ¼”“UNC + R ½”
Collar Ø 60mm
Dimensions mm 440×285× 100
Weight 6,5kg
Scope of delivery *

*Carrying case, extra handle, Gardena water connection, PRCD
