Dr.Bender, 2500W@110V, 300 / 520 / 1700 (EBM33L)
Double-tap and hold to zoom.
Mouse over the image to zoom.

Dr.Bender, 2500W@110V, 300 / 520 / 1700 (EBM33L)

Product Code: DB26

DB26 Breakdown

DB26 Parts

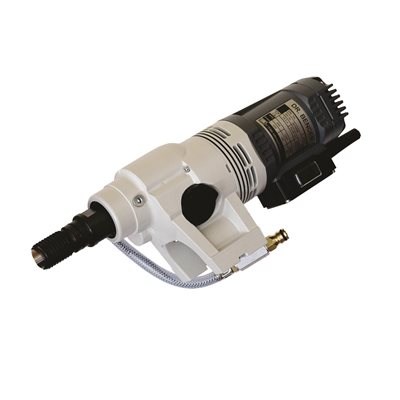

  • Core drilling machine, compact, powerful, in full metal execution
  • Rotor is hand- wound, for maximum filling degree of copper. More copper means more power and better constancy of temperature, consequently better efficiency factor
  • Protection switch respectively overload protection
  • Gear protection via mechanical clutch
  • 3 speed gear in oil bath
  • Precise justify via water level bubble for horizontal and vertical drillings
  • Water connection mountable in different positions
  • Availability: In stock
Technical datas EBL33L
Power input 2500W
Power output 1950
Voltage/ Frequency 230V/ 50-60 Hz
Rated speed min-1 300/520/ 1700
Rated torque Nm 55/ 19/ 10
Drilling range mm 20- 250 mm
Drill bit connection 1 ¼” UNC + R½“
Collar Ø 60mm
Dimensions mm 562×100×150
Weight 6,5kg
Hole pattern for mounting Standard (4xM8, Key Slot 10×5mm)
Order Number 201193
